Product specifications

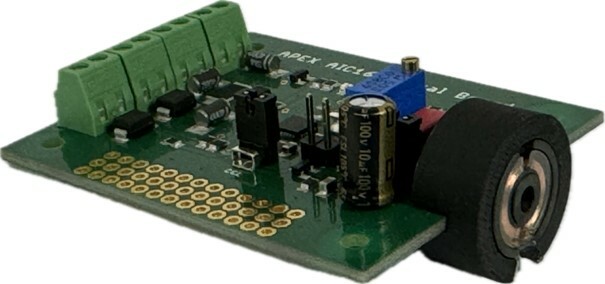

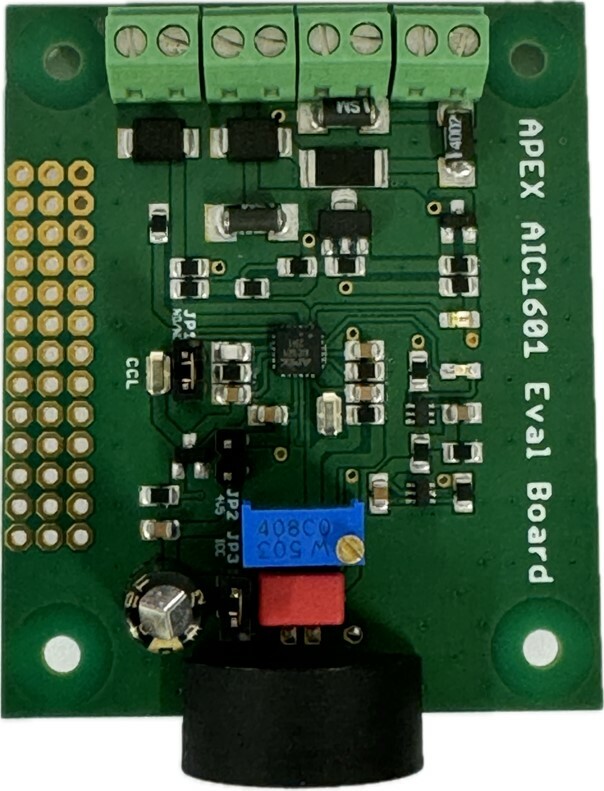

EK88 - Evaluation Kit for the AIC1601
The AIC1601 Eval board can be used for evaluation of the Apex AIC1601 in an inductive proximity switch application. It features a low side open collector output which is integrated in the IC, and a high side output realized by means of external components. Both outputs are protected against over voltage and over current. In case of over current, power dissipation is limited by entering a hiccup mode until normal load condition has returned. Freewheel diodes are placed on both outputs, allowing to switch inductive loads such as relays.
- APEX Microtechnology product -
