Product specifications
EK59 - Evaluation Kit for MP38CL and MP39CL
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

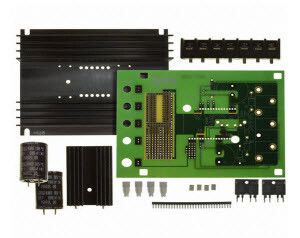

This easy-to-use kit provides a platform for the evaluation of linear power amplifiers circuits using the MP38CL-39CL pin- out.
With ample bread boarding areas it is flexible enough to analyze a multitude of standard or proprietary circuit configurations. Critical connections for power supply bypassing are pre-wired. Components not usually readily available in engineering labs are provided. External connection to the evaluation kit can be made via the terminal block and terminal pads at the edges of the circuit board. The terminal pads are suitable for soldering standard banana jacks or direct wiring of wires. Additionally, banana jacks and a BNC connector can be inserted into the holes at the edge of the board and wired to the numbered terminal pads.
- APEX Microtechnology product -
