Evaluation Kit for SA01

More information

Stock
In stock
Delivery time
if not in stock: 4 ~ 6 weeks
Part number
EK01
Datasheet
View datasheet
$ 121.80 excl VAT

Product specifications

EK01 - Evaluation Kit for SA01

** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

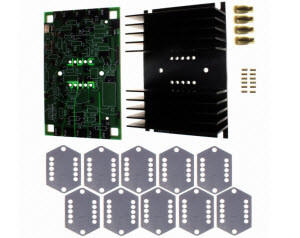

This easy-to-use kit provides a platform for the evaluation of PWM amplifiers using the SA01 pin-out configuration. It can be used to analyze a multitude of standard or proprietary circuit configurations, and is flexible enough to do most standard amplifier test configurations. The board is designed for surface mounting all components except the switching amplifier.

Only components unique to the EK01 are provided in this kit. Hardware similar to that shown in figure 1 must be obtained locally. The PC board and the foot print of the heatsink measure 3" by 5".

Parts List
Heatsink.....................HS16..............1
PC mount Cage Jacks.....MS04.............1 Bag/12 each
PC Board....................EVAL07...........1
Spacer Grommets..........60SPG00001.....4
Thermal Washer............TW10.............1 Box/10 each
