Evaluation Kit for SA03

More information

Stock
Out of stock
Delivery time
if not in stock: 4 ~ 6 weeks
Part number
EK03
Datasheet
View datasheet
$ 294.60 excl VAT

Product specifications

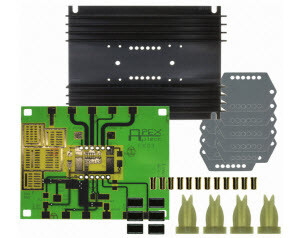

EK03 - Evaluation Kit for SA03

** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

This easy-to-use kit provides a platform for the evaluation of PWM amplifiers using the SA03 pin-out configuration. It can be used to analyze a multitude of standard or proprietary circuit configurations, and is flexible enough to do most standard amplifier test configurations. The board is designed for surface mounting all components except the switching amplifier.

Only components unique to the EK03 are provided in this kit. Hardware similar to that shown in figure 1 must be obtained locally.

-- APEX Microtechnology product --

Related products

SA03

Switching Amplifier, 100V, 30A

$ 1,005.70
