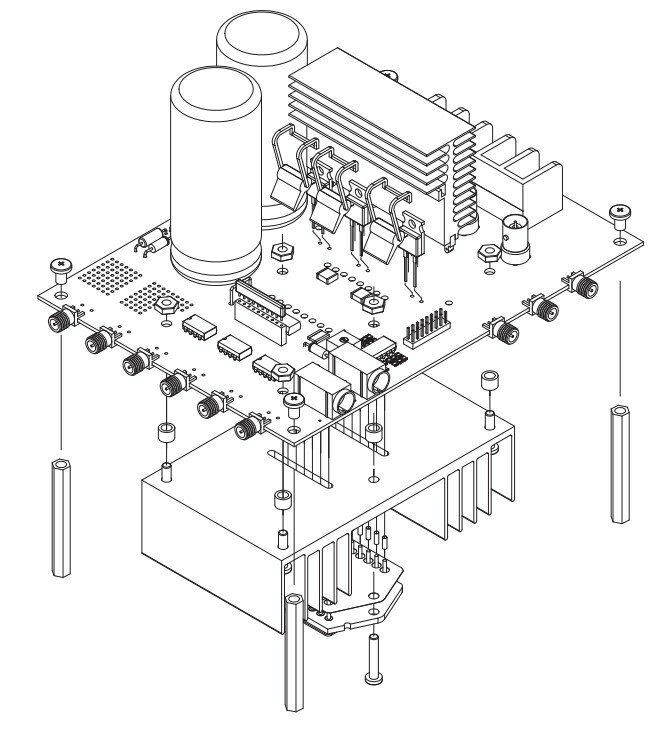

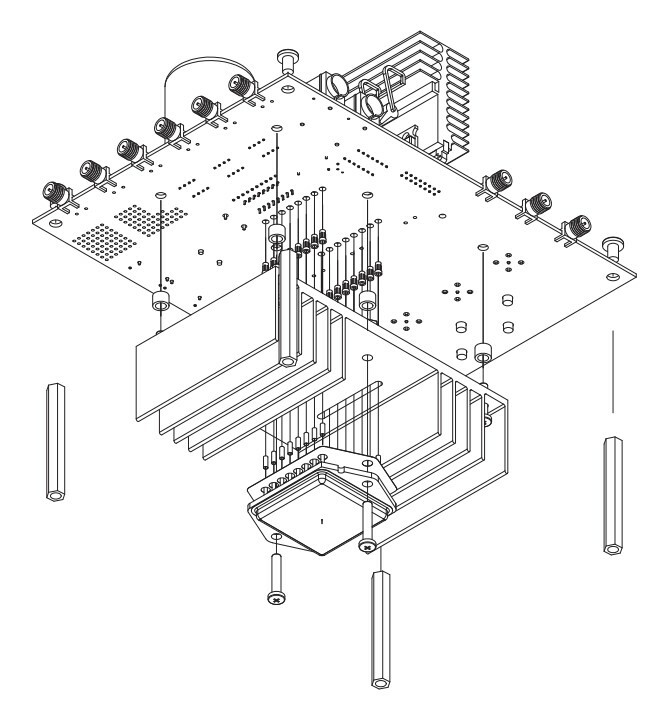

EK76 - Evaluation Kit for SA310KR
This kit contains everything needed for rapid prototyping with the SA310KR 3-phase driver. With a multitude of circuit options, the EK76 offers versatility when in comes to connecting inputs, measuring outputs, and conditioning signals to the specific application environment.
High- and low- input signals for each phase may be supplied from any 3 V to 18 V digital controller via standard pin header or SMA connectors.
A removable 50 O termination resistor is offered for impedance-matched inputs. Coaxial measurement points areoffered for high-fidelity waveform measurement, so erroneous overshoot/ringing are cut down to a minimum.
The layout is carefully optimized for signal and power transmission, while permitting easy integrationwith system controllers and 3-phase loads.
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
- APEX Microtechnology product -
