Product specifications

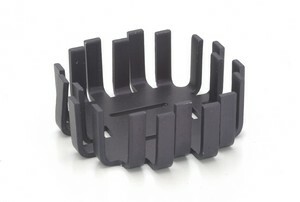

HS21 - DIP Heatsink
Type ............................................ Board Level
Package Cooled ............................... 6-DIP
Attachment Method .......................... Bolt On
Shape .......................................... Square
Length ......................................... 2.500" (63.50mm)
Width .......................................... 2.500" (63.50mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 0.900" (22.86mm)
Power Dissipation @ Temperature Rise ... 3W @ 20°C
Thermal Resistance @ Forced Air Flow .... 30°C/W @ 500 LFM
Thermal Resistance @ Natural .............. 5.6°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
