Product specifications

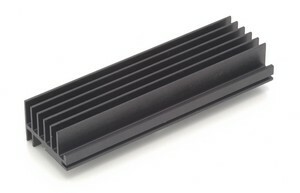

HS29 - TO-220 Heatsink
Type ............................................ Board Level, Vertical
Package Cooled ............................... PSIP
Attachment Method .......................... Bolt On and PC Pin
Shape .......................................... Rectangular
Length ......................................... 2.461" (63.50mm)
Width .......................................... 1.650" (41.91mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............. 1.000" (25.40mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. -
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
