High Voltage Interface IC

More information

Stock
In stock
Delivery time
if not in stock: 12+ weeks
Part number
AIC1605
Product brief
View product brief
Datasheet
View datasheet
Output current
0 - 200 mA
Slew rate
0 - 50 V/µs
Supply Voltage
0 - 99V
5000pcs per reel
$ 2.32 excl VAT
Quantity
Unit price
From 5 pcs$ 2.25
From 25 pcs$ 2.13

Product specifications

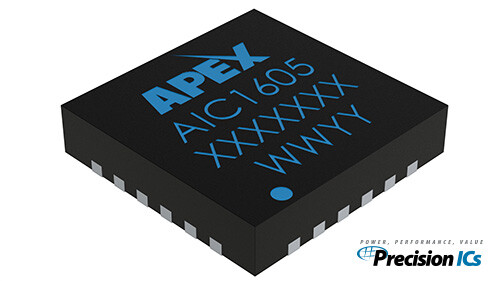

AIC1605 - High Voltage Interface IC - 24-pin QFN

PRODUCT OVERVIEW
The AIC1605 provides high voltage N-Type and P-Type open drain outputs, a buck and linear regulator as well as two OP-AMPs and two LED drivers.

It is highly suitable for building a three-wire sensor interface. It can be used also as a supply and output stage for other applications.

TYPICAL APPLICATIONS
• Inductive Proximity Sensor
• Optical Switch
• Sensor Preamplifier
• LED Driver
• DC Motor Control
• HV Preamplifier
• Level Shifter

FEATURES
• Supply voltage - 5VDC...36VDC
• 5V/20mA linear regulator
• Adjustable fix frequency buck regulator (8V...34V)
• 100mA P-Type and N-Type open drain outputs, over-current and short-circuit protected
• 2 LED current sinks 2mA
• 2 operational amplifiers

- APEX Microtechnology product -
