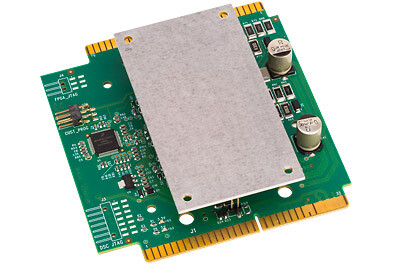

MP113 Printhead Driver Module

More information

Stock
Out of stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
MP113 Printhead Driver Module
Datasheet
View datasheet
Output current
-
Slew rate
-
Supply Voltage
-
$ 330.65 excl VAT
Quantity
Unit price
From 5 pcs$ 320.73
From 25 pcs$ 304.20

Product specifications

MP113

MP113 is an inkjet printhead driver intended for use with Fujifilm Dimatix SG-class printheads. It can also be used with Q-class print heads and compatible printheads of other brands.

MP113 contains an analog and a digital section.
The analog section consists of two independent power amplifiers, each of which capable of producing the fire pulses needed to drive up to 512 inkjet nozzles.
The digital section converts 1- or 2-bit, digital printing data into bit streams for the printhead’s output latches, and exactly timed analog input signals for the power op amps.

The analog section plugs into the digital section and is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink. The digital section has card edge connectors for connection to the printhead(s) and to digital printing control.

Features:
2 Power, Analog Output Channels
- High Output Voltage: Up To 135Vpp
- High Output Current: 3A Continuous, 7A Peak (Per Channel)
- High Output Slew Rate: Up To 45V/µs
- 100W Dissipation Capability (Per Channel)
- Over-temperature Protection
- Temperature Sense

Integrated Digital Printing Data Converter
- LVDS Serial Data Input, 1- Or 2-bits Per Nozzle
- Up To 1024 Nozzles
- Output Waveform Frequency: Up To 50kHz

- APEX Microtechnology product -
