Power Op-Amp, 100V, 15A, 170W

More information

Stock
In stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
MP111FD
Datasheet
View datasheet
Output current
> 10 A
Slew rate
50 - 350 V/µs
Supply Voltage
100 - 500V
$ 130.64 excl VAT

Product specifications

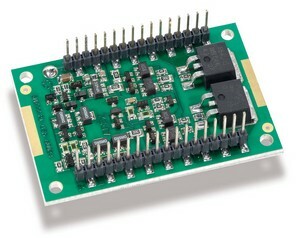

MP111FD - Power Operational Amplifier, 100V, 15A, 170W

The MP111 operational amplifier is a surface mount constructed component that provides a cost-effective solution in many industrial applications. The MP111 offers outstanding performance that rivals much more expensive hybrid components yet has a footprint of only 4 sq in. The MP111 has many optional features such as four-wire current limit sensing and external compensation. The 500 kHz power bandwidth and 15 amp continuous and 50A pulse output of the MP111 makes it a good choice for piezo transducer drive applications. The MP111 is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink.

FEATURES
• LOW COST
• HIGH VOLTAGE - 100 VOLTS
• HIGH OUTPUT CURRENT- 50 AMP PULSE OUTPUT, 15 AMP CONTINUOUS
• 170 WATT DISSIPATION CAPABILITY
• 130 V/uS SLEW RATE
• 500kHz POWER BANDWIDTH

APPLICATIONS
• INKJET PRINTER HEAD DRIVE
• PIEZO TRANSDUCER DRIVE
• INDUSTRIAL INSTRUMENTATION
• REFLECTOMETERS
• ULTRA-SOUND TRANSDUCER DRIVE

- APEX Microtechnology product -
