PA89A - High Voltage Power Operational Amplifier, 1200V, 75mA, "A" Grade
The PA89 is an ultra high voltage, MOSFET operational amplifier designed for output currents up to 75 mA. Output voltages can swing over 1000V p-p. The safe operating area (SOA) has no second breakdown limitations and can be observed with all types of loads by choosing an appropriate current limiting resistor. High accuracy is achieved with a cascode input circuit configuration and 120dB open loop gain. All internal biasing is referenced to a bootstrapped zener-MOSFET current source, giving the PA89 a wide supply range and excellent supply rejection. The MOSFET output stage is biased for class A/B linear operation. External compensation provides user flexibility.

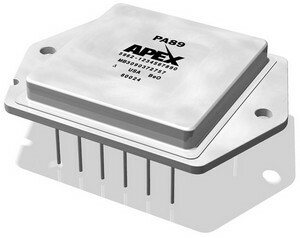

The PA89 is 100% gross leak tested to military standards for long term reliability. This hybrid integrated circuit utilizes a beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The MO-127 High Voltage, Power Dip™ package is hermetically sealed and electrically isolated. The use of compressible thermal washers will void the product warranty.
Ultra-high voltage capability combined with the bridge amplifier configuration makes it possible to develop +/–1000 volt peak swings across a piezo element. A high gain of –50 for A1 insures stability with the capacitive load, while “noise-gain” compensation Rn and Cn on A2 insure the stability of A2 by operating in a noise gain of 50.
• 1140V P-P SIGNAL OUTPUT
• WIDE SUPPLY RANGE — ±75V to ±600V
• PROGRAMMABLE CURRENT LIMIT
• 75 mA CONTINUOUS OUTPUT CURRENT
• HERMETIC SEALED PACKAGE
• INPUT PROTECTION
• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC DEFLECTION
• SEMICONDUCTOR TESTING
- APEX Microtechnology product -
