PA02 - Power Operational Amplifier, 38V, 5A
The PA02 and PA02A are wideband, high output current operational amplifier designed to drive resistive, inductive and capacitive loads.
Their complementary “collector output” stage can swing close to the supply rails and is protected against inductive kickback.
For optimum linearity, the output stage is biased for class A/B operation. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable, current limiting resistors (down to 10mA). Both amplifiers are internally compensated but are not recommended for use as unity gain followers. For continuous operation under load, mounting on a heatsink of proper rating is recommended.

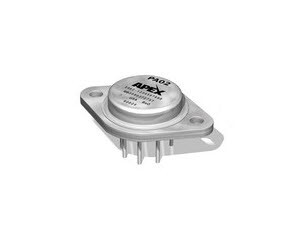

These hybrid integrated circuits utilize thick film (cermet) resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. Isolation washers are not recommended. The use of compressible thermal washers and/or improper mounting torque will void the product warranty.
• Fast settling time – 600ns
• High power bandwidth – 350kHz
• High slew rate – 20V/µs
• Low crossover distortion – Class A/B
• Low internal losses – 1.2V @ 2A
• High output current – 5A PEAK
• Low input bias current – FET input
• Isolated case – 300VDC
• Imaging and Camera Control
• Vibration Cancellation
• Gimbal Positioning
• Test Instrument
• Valve Control
• Magnetic Resonance Imaging
• Flight Control Actuator
• Wire Bonder
