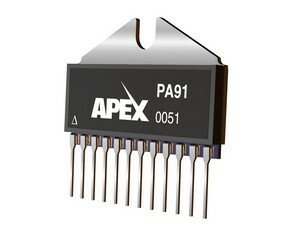

Power Op-Amp, 450V, 200mA

More information

Stock
Out of stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
PA91
Datasheet
View datasheet
$ 143.76 excl VAT
Quantity
Unit price
From 5 pcs$ 139.45
From 25 pcs$ 132.26

Product specifications

PA91 - High Voltage Power Operational Amplifier, 450V, 200mA

The PA91 is a high voltage, low quiescent current MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 200mA and pulse currents up to 350mA. The safe operating area (SOA) has no second breakdown limitations and can be observed for all type loads by choosing an appropriate current limiting resistor. The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. Apex Precision Power’s Power SIP package uses a minimum of board space allowing for high density circuit boards. The 12-pin PowerSIP package is electrically isolated.

package option:
90° formed leads is available (package EE). Please contact us.

FEATURES:
• HIGH VOLTAGE — 450V (±225V)
• LOW QUIESCENT CURRENT — 10mA
• HIGH OUTPUT CURRENT — 200mA
• PROGRAMMABLE CURRENT LIMIT
• HIGH SLEW RATE — 300V/µs

APPLICATIONS
• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC TRANSDUCERS
• PROGRAMMABLE POWER SUPPLIES UP TO 440V

- APEX Microtechnology product -
