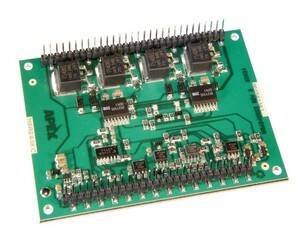

MSA240KC - Pulse Width Modulation Amplifier, 100V, 20A
The MSA240 is a surface mount constructed PWM amplifier that provides a cost effective solution in many industrial applications.
The MSA240 offers outstanding performance that rivals many much more expensive hybrid components. The MSA240 is a complete PWM amplifier including an oscillator, comparator, error amplifier, current limit comparators, 5V reference, a smart controller and a full bridge output circuit. The switching frequency is user programmable up to 50 kHz. The MSA240 is built on a thermally conductive but electrically insulating substrate that can be mounted to a heatsink.
- LOW COST
- HIGH VOLTAGE - 100 VOLTS
- HIGH OUTPUT CURRENT - 20 AMPS
- 2kW OUTPUT CAPABILITY
- VARIABLE SWITCHING FREQUENCY
- BRUSH MOTOR CONTROL;
- MAGNETIC BEARINGS;
- CLASS D SWITCHMODE AMPLIFIER;
- APEX Microtechnology product -
