EK61 - Evaluation Kit for PA78DK & PA79DK
Fast and easy breadboarding of circuits using the PA78DK or PA79DK is possible with the EK61 evaluation kit.

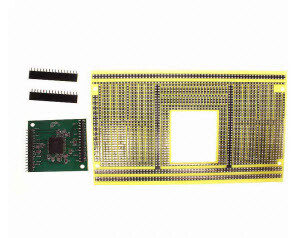

The EK61 includes both the universal EVAL36 board and the EVAL61 substrate. The use of EVAL36 and EVAL61 allows for a large area of breadboarding space to work with while allowing a surface mount substrate for the PA78DK or PA79DK. The PA78DK or PA79DK amplifier may be surface mounted directly to the EVAL61, a thermally conductive but electrically isolated substrate. The PA78DK or PA79DK is soldered to a DUT foil footprint area the size of the heatslug. The metal substrate is cost effective and can allow the PA78DK or PA79DK to dissipate power up to the datasheet rating.
- APEX Microtechnology product -
