PA95 - 900V, 1.6mA Power Amplifier with Low Standby Current

The PA95 is a 900V power operational amplifier designed as a low cost solution for driving continuous output currents up to 100mA and pulse currents up to 200mA for high voltage applications including instrumentation, piezoelectric transducers, and electrostatic transducers and deflection.

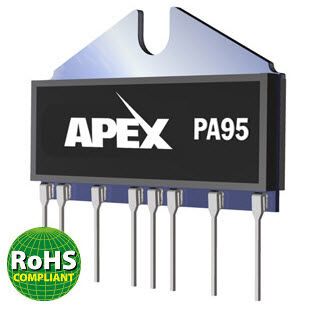

This MOSFET power amplifier exhibits a very low 1.6mA of quiescent current and external compensation provides flexibility in choosing bandwidth and slew rate for the application. Housed in a space saving, electrically isolated 8-pin PowerSIP package, the PA95 lends itself to high-density circuit board layouts.

High voltage – 900V (±450V)

Low quiescent current – 1.6mA

High output current – 100mA continuous, 200mA PEAK

Programmable current limit



  • Ink Jet Printer
  • Sonar
  • Ultrasonic Therapy & Surgical Tools
  • Vibration Cancellation
  • Heads-Up Display
  • Analysis Equipment
  • Inspection System



Variant Vos (mV) IB (pA) IIO (pA) Temp Range (°C) Package Option


5 2000 500 -25 to 85 8-pin SIP DQ
PA95EC 5 2000 500 -25 to 85

SIP EC (formed leads)

PA95RC 5 2000 500 -25 to 85 SIP RC (formed leads 90° toward heat tab)
