SA110 - 400 V, ≥250 kHz Silicon Carbide Half H-Bridge Module

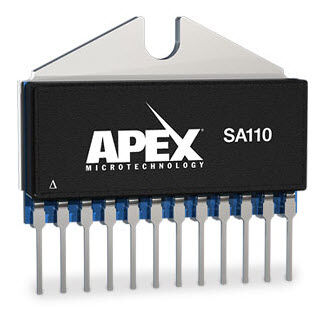

The SA110 is Apex Microtechnology’s first high current, high voltage half H-bridge to utilize Silicon Carbide (SiC) MOSFETs with integrated gate drive. SiC MOSFETs provide reduced switching losses, lower conduction losses, and a low dependency of RDS(on) over temperature. The SA110 features integrated gate drive control, a very high 400kHz MAX switching frequency, and 28A of continuous output current in the A grade variant.

This hybrid is offered in a 12-pin PSIP package to provide a compact footprint along with protection features. With integration of the gate drive, switching speeds are greatly improved as parasitic impacts are reduced and easier to control. SA110 is ideal for applications where focus is on over temperature performance, high efficiency, and compact design.

400 V, ≥250 kHz Silicon Carbide Half H-Bridge Module

  • High continuous output current – 28 A (grade A variant)
  • High supply voltage– 400 V
  • Fast switching frequency – 400 kHz
  • Integrated with digitally controlled gate drive
  • Under-voltage lock-out and active Miller clamping
